Semiconductor Inspection and Measurement Equipment Market to Reach $15.08 Billion by 2030, Growing at 3.8% CAGR

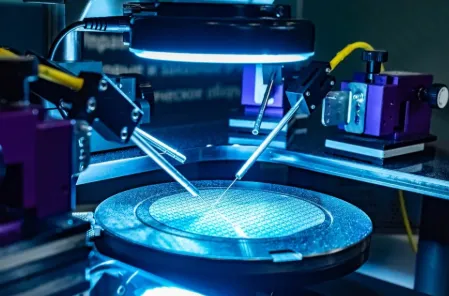

Semiconductor Inspection and Measurement Equipment: Critical Enablers of Yield Management

Semiconductor inspection and measurement equipment plays an indispensable role in the management of the semiconductor manufacturing process. A typical semiconductor wafer fabrication process involves 400 to 600 individual steps, undertaken over the course of one to two months. If any defect occurs early in the process, all the work performed in the subsequent time-consuming steps — including photolithography, etching, deposition, and planarization — is rendered completely wasted. This economic reality makes early detection and precise measurement not merely a quality issue but a fundamental driver of fab profitability.

The main equipment segments covered in this report include: mask inspection (reticle inspection), thin-film inspection, optical inspection, wafer defect inspection, macro defect inspection, and image wafer inspection. Each category addresses specific failure modes, ranging from sub-10nm patterning defects on extreme ultraviolet (EUV) masks to macroscopic scratches or particles visible under high-intensity illumination.

Semiconductor Inspection and Measurement Equipment Market Summary

According to a new market research report published by Market Monitor Global, the global Semiconductor Inspection and Measurement Equipment market is projected to reach USD 15.08 billion by 2030, growing at a compound annual growth rate (CAGR) of 3.8% during the forecast period.

Market Monitor Global's analysis indicates that the global key manufacturers of Semiconductor Inspection and Measurement Equipment include KLA Corporation, Applied Materials, Hitachi High-Technologies, ASML, Onto Innovation, Lasertec, SCREEN Semiconductor Solutions, ZEISS, Camtek, and Skyverse. In 2023, the global top five players accounted for approximately 76.0% of total revenue, reflecting a highly concentrated market where technological leadership, patent portfolios, and long-term customer relationships create formidable barriers to entry.

In terms of product type, the Defect Inspection Equipment segment is currently the largest, holding a 64.1% share. This category includes bright-field and dark-field optical inspection systems, electron-beam inspection tools, and advanced e-beam review stations. Defect inspection remains the most critical spend category because it directly addresses the "early detection prevents wasted downstream processing" principle that governs fab economics. A single undetected killer defect on a 300mm wafer can destroy hundreds of dies, each representing significant added value.

Regarding application, the Wafer segment is the largest, accounting for 83.4% of the market. Wafer-level inspection and measurement encompasses both front-end-of-line (FEOL) and back-end-of-line (BEOL) processes, including after deposition, after etch, after CMP (chemical mechanical polishing), and after cleaning. The remaining 16.6% is split between mask/reticle inspection, packaging inspection, and panel-level inspection for advanced packaging applications.

Market Drivers:

• D1: Exponential growth of the semiconductor industry – The relentless increase in demand for electronic devices — smartphones, high-performance computing (HPC), artificial intelligence (AI) accelerators, Internet of Things (IoT) sensors, and automotive electronics — continues to drive semiconductor unit shipments to record levels. Each new wafer fab (such as those announced by TSMC, Intel, Samsung, and multiple Chinese domestic fabs) requires hundreds of inspection and measurement tools. Even mature node fabs (28nm and above) require regular equipment refreshes, while leading-edge fabs (3nm, 2nm, and beyond) demand entirely new generations of inspection capabilities.

• D2: Increasing defect sensitivity requirements at advanced nodes – As critical dimensions shrink below 5nm, the size of killer defects that must be detected has correspondingly decreased to below 10nm. Optical inspection tools operating at deep ultraviolet (DUV) wavelengths are reaching fundamental resolution limits, driving adoption of multi-beam electron-beam inspection (e-beam) and extreme ultraviolet (EUV) actinic mask inspection. Each generational node transition typically requires a 30-50% improvement in defect detection sensitivity, often accompanied by a complete tool upgrade cycle.

• D3: Rising wafer starts and fab utilization rates – Following the semiconductor supply chain disruptions of 2020-2022, global wafer fabrication capacity has expanded aggressively, with multiple new fabs entering production in the US, Europe, Japan, and Southeast Asia. Higher wafer starts directly translate into increased consumable demand (e.g., calibrated wafers for tool matching) and higher utilization of inspection tools, which are typically operated 24/7 in high-volume fabs. Even a 1% improvement in tool uptime or throughput can generate millions of dollars in additional fab output annually.

• D4: Complexity of multi-patterning and advanced materials – Leading-edge logic and memory devices now employ multi-patterning techniques such as self-aligned quadruple patterning (SAQP), which dramatically increase the number of lithography and etch steps. Each additional patterning step introduces new opportunities for overlay errors, edge placement errors, and defect generation. Similarly, the introduction of new materials (cobalt for interconnects, ruthenium for liners, ferroelectric hafnium oxide for emerging memories) requires novel measurement techniques to characterize film thickness, composition, and stress without damaging sensitive device layers.

Market Restraints:

• R1: High capital cost and long qualification cycles – A single advanced optical defect inspection tool can cost between $5 million and $15 million, while an e-beam review tool may exceed $20 million. For smaller foundries, specialty fabs (e.g., power electronics, MEMS, CMOS image sensors), or R&D consortia, these capital requirements are prohibitive. Furthermore, qualifying a new inspection tool for production use typically requires 6–12 months of side-by-side comparisons with existing tools, correlation studies across multiple product lots, and training of specialized process control engineers. This lengthy qualification timeline slows the adoption of new inspection technologies, even when they offer superior capabilities.

• R2: Market concentration and limited supplier alternatives – With the top five players controlling 76% of the market, semiconductor manufacturers have limited bargaining power, particularly for the most advanced tools where only one or two suppliers offer viable solutions. This concentration also creates supply chain vulnerability — if a single supplier experiences component shortages, quality issues, or capacity constraints, fabs may face delays in equipment delivery or maintenance support. New entrants, including Chinese domestic suppliers, face steep challenges in gaining customer trust due to the extreme reliability requirements (mean time between failures often exceeding 10,000 hours) demanded by production fabs.

• R3: Economic cyclicality of the semiconductor industry – While the long-term trend is strongly upward, the semiconductor industry experiences pronounced boom-bust cycles. During downturns (such as the 2023 memory market correction), fab utilization rates drop, capital expenditure is frozen, and orders for new inspection equipment are deferred. Because inspection tools are not directly tied to unit production in the same way as etch or deposition tools, they are often among the first capital categories to be cut when fabs tighten spending. This cyclicality makes revenue forecasting challenging for equipment suppliers and can lead to overcapacity in the supply chain during recovery periods.

Market Opportunities:

• O1: Advanced packaging inspection – As Moore's Law slows, the semiconductor industry increasingly turns to advanced packaging technologies such as chiplets, hybrid bonding, 2.5D/3D integration, and fan-out wafer-level packaging (FOWLP) to continue performance scaling. These packaging processes introduce new defect types: bond line voids, dishing after planarization, post-bond alignment errors, and thermal-mechanical stress cracks. Traditional inspection systems designed for wafer-level defects are often inadequate for packaged devices, creating a greenfield opportunity for suppliers who develop purpose-built advanced packaging inspection tools. The market for packaging inspection is growing at a CAGR substantially higher than the overall wafer inspection market.

• O2: Inspection for non-silicon and power compound semiconductors – The rapid adoption of silicon carbide (SiC) and gallium nitride (GaN) power devices for electric vehicle inverters, charging infrastructure, and renewable energy systems is driving demand for inspection equipment suited to wide-bandgap materials. SiC and GaN wafers present unique inspection challenges: extreme transparency (requiring different optical settings), high defect densities in epitaxial layers, and large wafer bow/warpage that complicates autofocus. Manufacturers who adapt their inspection platforms (or develop dedicated tools) for these emerging materials can capture a share of a rapidly growing market segment, particularly in China, where SiC and GaN capacity expansion is accelerating.

• O3: Artificial intelligence and machine learning for defect classification – Modern inspection tools generate terabytes of image data per wafer. The bottleneck has shifted from data acquisition to data analysis — specifically, the rapid and accurate classification of detected defects into categories (killer defect, nuisance defect, repeating defect, etc.). AI-based defect classification, using deep convolutional neural networks, can reduce review times by 80-90% and enable real-time feedback to upstream process tools. Equipment suppliers that integrate powerful on-tool AI inference engines and build robust defect libraries (leveraging their cumulative installed base data) can create significant differentiation and customer lock-in.

• O4: Metrology for high numerical aperture (High-NA) EUV – The transition from 0.33 NA EUV to 0.55 NA (High-NA) EUV, scheduled for initial introduction at leading fabs in 2025-2026, will require entirely new measurement solutions for mask flatness, critical dimension uniformity, and through-pellicle inspection. High-NA EUV masks operate at higher intensity and different wavelengths, rendering many existing mask inspection tools obsolete. Suppliers who successfully develop High-NA-compatible inspection and measurement platforms (particularly actinic pattern mask inspection) will secure a critical position in the most advanced logic and memory manufacturing lines of the late 2020s.

• O5: In-line metrology for gate-all-around (GAA) and nanosheet devices – The industry transition from FinFET to GAA (also known as multi-bridge channel or MBCFET) introduces complex 3D structures with multiple vertically stacked nanosheets. Measuring critical dimensions, layer thicknesses, and etch depth uniformity in these recessed, multi-level structures challenges conventional optical critical dimension (OCD) tools. Emerging techniques such as small-angle X-ray scattering (SAXS), on-tool CD-SEM with advanced algorithms, and optical critical dimension with multi-angle illumination are being deployed. The measurement content per wafer for GAA devices is estimated to be 30-50% higher than for comparable FinFET designs, directly increasing the total available market for measurement equipment.
